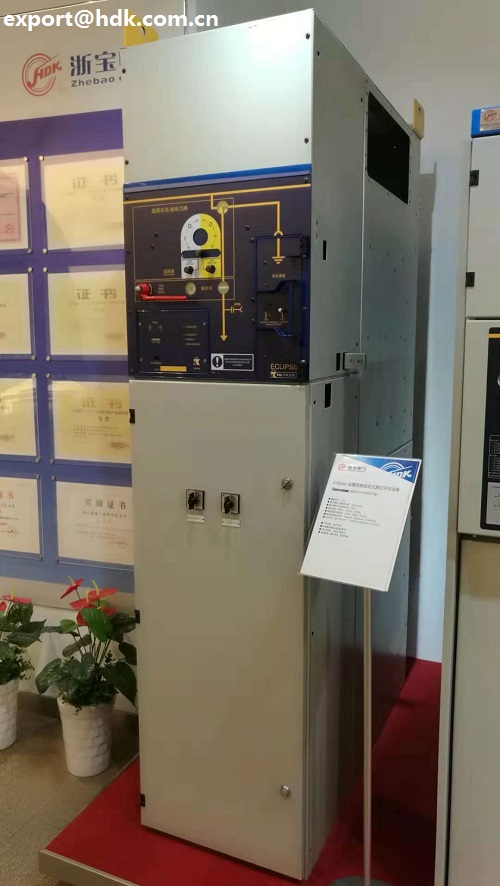

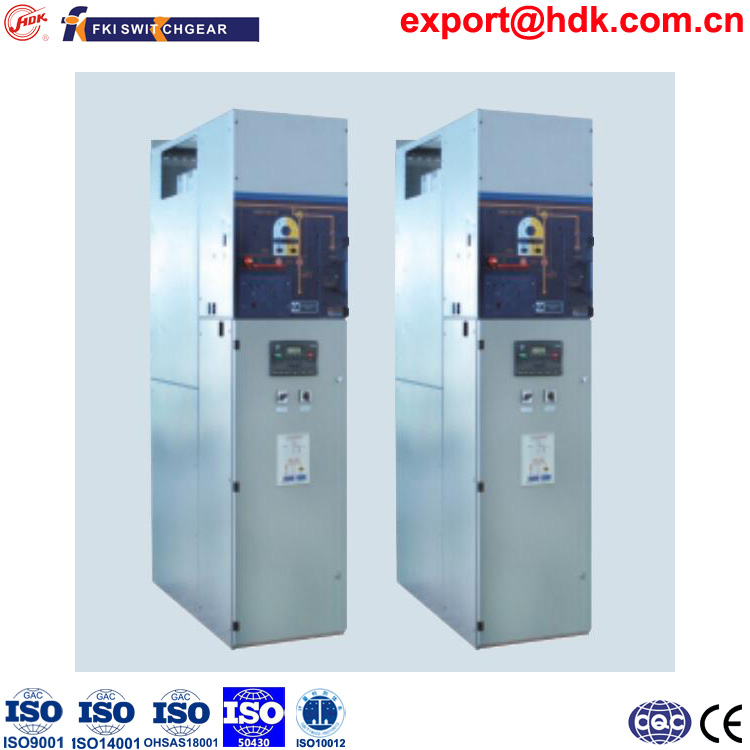

British FKI Eclipse12kV medium voltage metal-enclosed switchgear (licensed to Zhebao Electrical).

● Model: FKI Eclipse

● Name: AC armored fixed metal enclosed vacuum switchgear

● Rated frequency: AC 50Hz / 60Hz;

● Rated voltage (Ue): 12kV;

● Power frequency withstand voltage (1min): 42kV;

● Rated impulse withstand voltage (Uimp): 75kV;

● Rated current (Ir): 630A 1250A 2000A;

● Short time withstand current (Icw) (4s): 20kA 25kA 31.5kA;

● Short circuit drop-out current: 20kA 25kA 31.5kA;

● Single coil double steady state permanent magnetic actuator;

● Protect Degree: IP40, door open IP2x;

● Standard: IEC62271-200;

● Dimension: 2165H *500W *1162D (mm)
