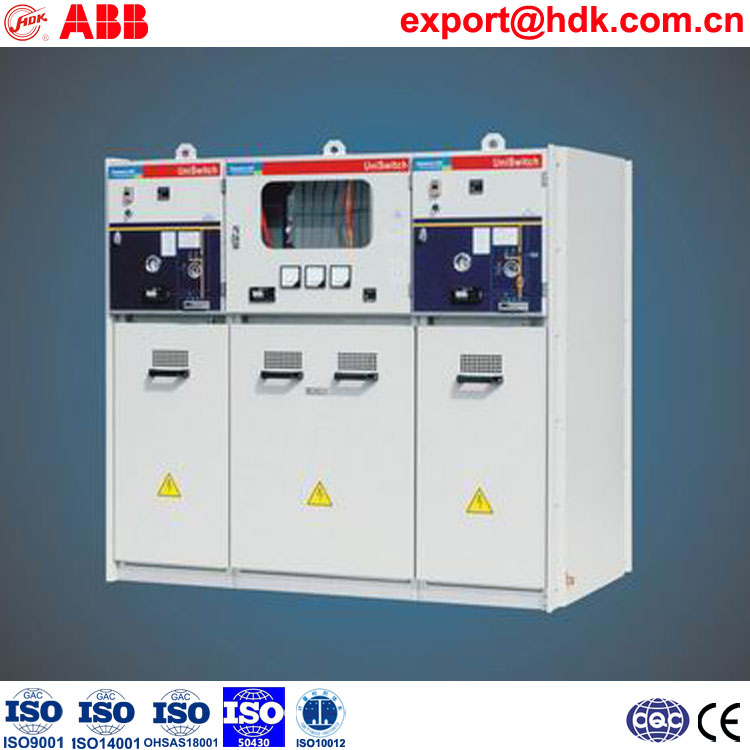

ABB UniSwitch cooperated High-voltage switchgear cabinet.

● Model: ABB UniSwitch

● Name: AC spaced metal enclosed switchgear

● Scheme options: load switch panel, load switch - fuse combined apparatus, Circuit Breaker panel, metering, cable cabinet;

● Rated voltage (Ue): 12kV;

● Power frequency withstand voltage (1min): 42kV;

● Rated impulse withstand voltage (Uimp): 75kV;

● Rated current (Ir): 630A (load switch panel), 125A (LS-Fuse combined);

● Short time withstand current (Icw) (4s): 25kA;

● Short circuit drop-out current: 31.5kA (combined panel, CB panel);

● Rated transfer current: 1700A (comb);

● Dimension: for LS and Comb 1635(1885)H *375(500)W *1000D (mm), for VCB 1885H *650W *1000D
