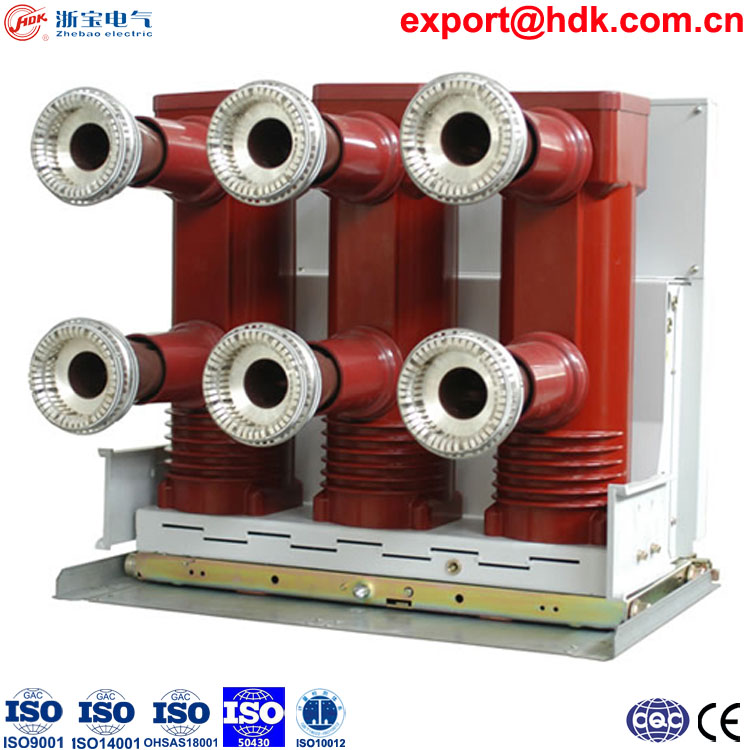

ZBP-24kV indoor high-voltage AC vacuum circuit breaker, VCB.

● Model: ZBP-24

● Name: AC High Voltage Vacuum Circuit Breaker (VCB)

● Rated frequency: AC 50Hz / 60Hz;

● Rated voltage (Ue): 24kV;

● Power frequency withstand voltage (1min): 65kV;

● Rated impulse withstand voltage (Uimp): 125kV;

● Rated current (Ir): 630A 1250A 1600A 2000A 2500A;

● Short time withstand current (Icw) (4s): 20kA 25kA 31.5kA ;

● Short circuit drop-out current: 20kA 25kA 31.5kA ;

● Phase spacing: 210/ 275mm;

● Install mode: trolley, fixed;

● Embedded pole column;

● Spring operating mechanism 30k time;

● Standard: IEC62271-100, IEC60694
