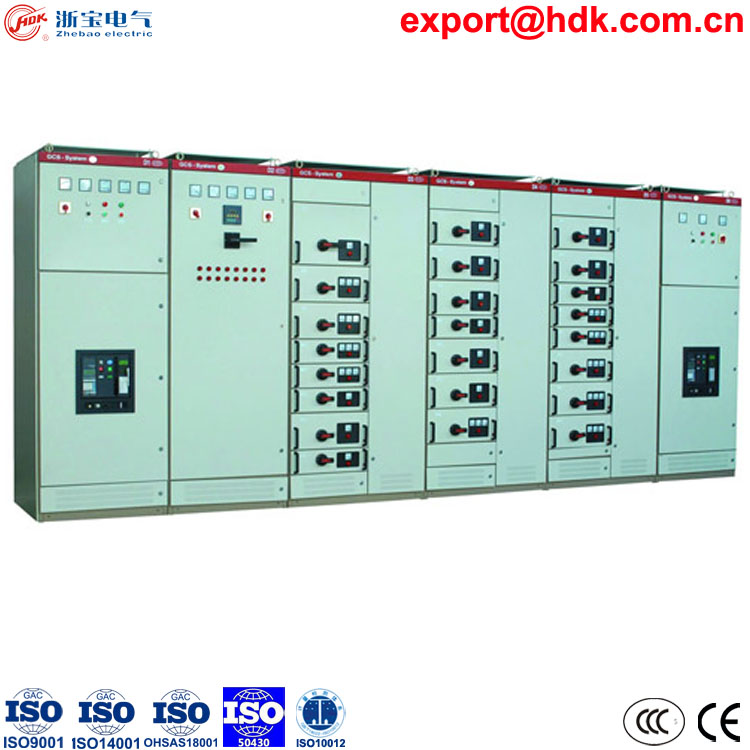

GCS Low-voltage draw-out switchgear cabinet

● Model: GCS

● Name: AC low voltage withdrawable switchgear

● Rated frequency: AC 50Hz / 60Hz;

● Rated voltage (Ue): 400V/ 690V;

● Rated insulation voltage(Ui): 1000V;

● Horizontal Busbar Rated current (Ir): 6300A or lower;

● Vertical Bus Rated current (Ir): 1500A;

● Horizontal Busbar Short time withstand current (Icw) (1s): 30kA 50kA 100kA;

● Vertical Bus Short time withstand current (Icw) (4s): 30kA 50kA 85kA;

● Functional units: drawable type;

● Protect Degree: IP20~ IP54;

● Standard: IEC61439-1:2011;

● Dimension: 2200H *400/ 600/ 800/ 1000W * 600/ 800/ 1000D (mm)
