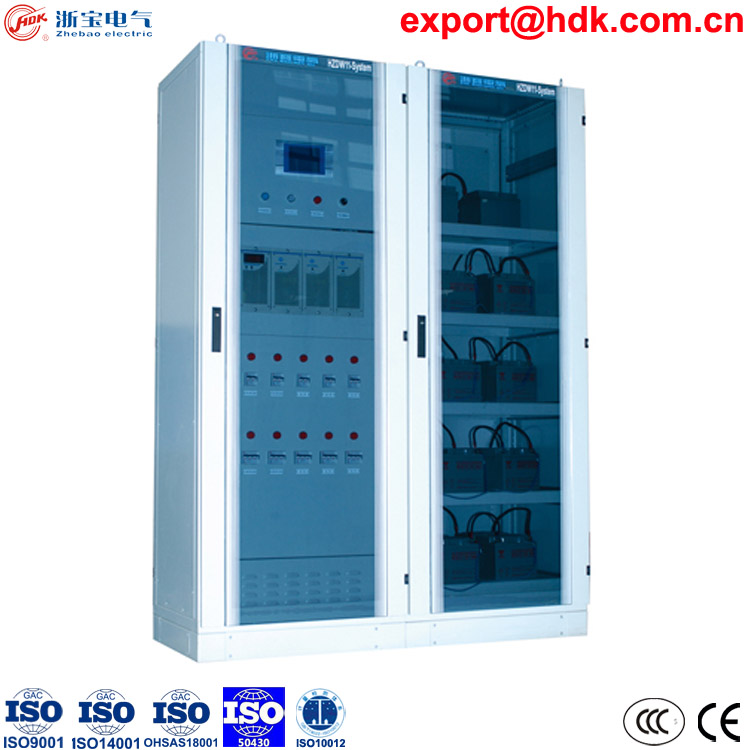

HZDW high frequency 400V Low-Voltage DC power cabinet.

● Model: HZDW

● Name: Intelligent Hi-frequency DC power cabinet

● Rated frequency: 50Hz;

● Rated input voltage: AC 220V / AC380V;

● Rated output voltage: DC 220V / DC110V;

● Rated battery capacity: 20Ah 38Ah 50Ah 65Ah 100Ah 150Ah 200Ah 300Ah;

● High frequency rectifying modulazation structure;

● Microcomputer automatic monitoring system;

● Remote control, measuring, signalling and adjustment;

● Protect Degree: IP30/ IP41;

● Standard: IEC62271-200;

● Dimension: control cabinet 2200H *800W *600D (mm), battery cabinet 2200H *800W *600D
