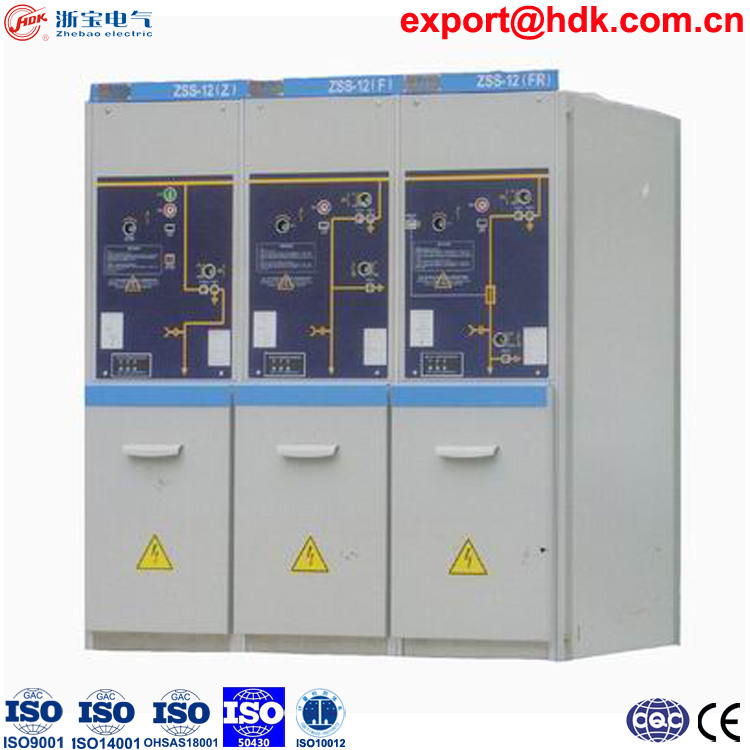

ZSS-12 solid-insulated loop-network high voltage metal enclosed switchgear

● Model: ZSS-12

● Name: AC solid insulated metal enclosed switchgear

● Scheme options: vacuum load switch panel ZSS-12(F), load switch - fuse combined ZSS-12(FR), Vacuum CB panel ZSS-12(Z);

● Rated voltage (Ue): 12kV;

● Rated current (Ir): 630A (load switch panel, VCB panel), 1250A (LS-Fuse combined panel);

● Short time withstand current (Icw) (4s): 20kA;

● Short circuit drop-out current: 31.5kA (combined panel), 20kA (VCB panel);

● Rated take over current: 3150A (LS-fuse combined panel);

● Protect Degree: IP40, door open IP2x;

● Standard: IEC62271-200;

● Dimension: 1200H *420W *860D (mm)
