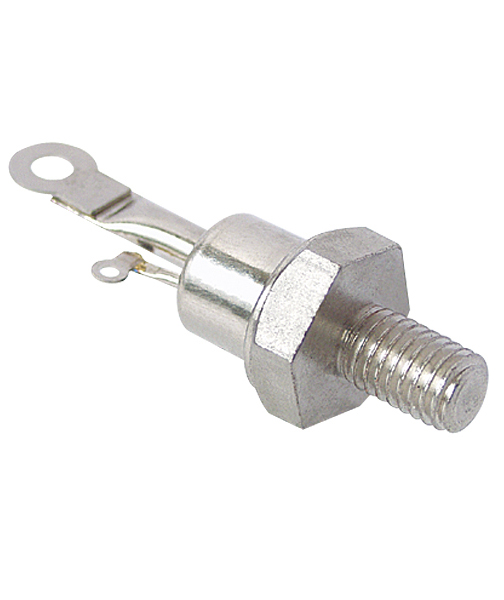

Inverter Grade Thyristors
1.Application
IT(AV)=100-2500A
V DRM/V RRM=100-2500V
Metal case with ceramic insulator
Conform to national standard GB4193-1986
In accordance with IEC international electrical committee standard
High surge current capabilities
All diffused design, Center amplifying gate
Guaranteed high dV/dt
Guaranteed high dl/dt
Low thermal impedance,High speed performance
2.Typical Application
.Inverters
.Induction heating
.Intermediate frequency power supply
| Type | IT(AV) A | ITSM A | VFM V | VRRM VDRM V | IRRM IDRM MA | IGT mA | VGT V | IH mA | dv/dt mA | di/dt A/μs | tq μs | Tj oC | Rjc oC/W | Weight | Outline No |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| KK100A | 100 | 160 | ≤2.6 | 600 ~ 2500 | ≤30 | 30-150 | 30-150 | ≥200 | ≥100 | ≤30 | -40 ~ +125 | <0.11 | 75 | F1 | |
| KK200A | 200 | 320 | <0.11 | 90/205 | F2E2 | ||||||||||
| KK300A | 300 | 480 | 30-200 | 0.5 | 30-200 | <0.08 | 105/290 | F3E3 | |||||||
| KK500A | 500 | 800 | ≤3.0 | ≤40 | <0.05 | 205/375 | F4E4 | ||||||||
| KK800A | 800 | 1280 | 30-250 | -3.0 | 30-250 | <0.04 | 230/430 | F5E5 | |||||||
| KK1000A | 1000 | 1600 | ≤80 | <0.02 | 300/540 | F6E6 | |||||||||
| KK1500A | 1500 | 2400 | 30-300 | 30-300 | <0.02 | 670 | E7 |
