Product Description

Application

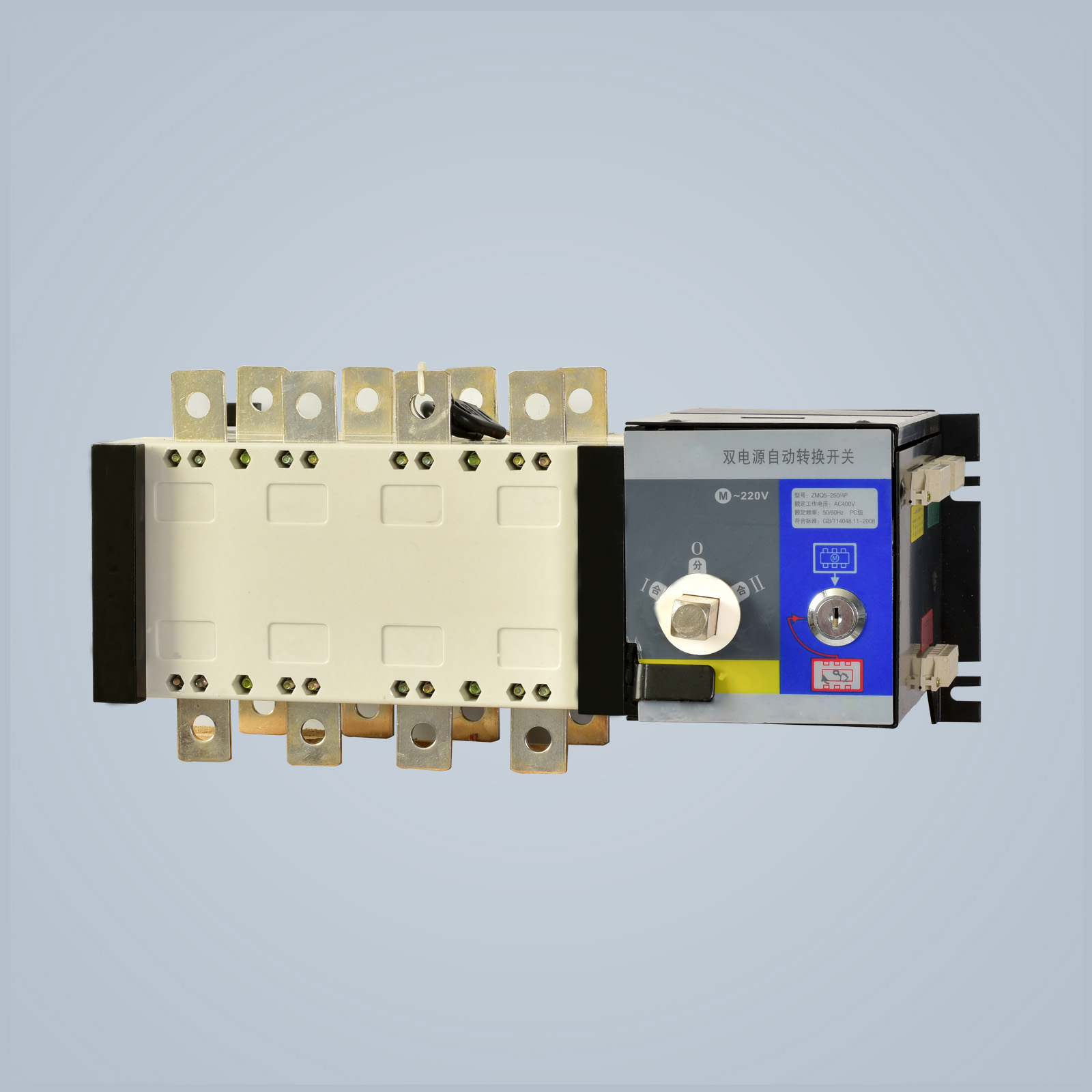

Auto transfer switching equipment (ATSE, ATS), is a device integrated with the switching function and logic control, truly perform electromechanical integration function, suitable for operating in the distribution system of AC50Hz, rated voltage AC400V, conventional thermal current up to 1600A in mineral and other enterprises. It provides the operation function of voltage detection, forcedly switching off “0” position, manual emergency operation and etc, widely used to shift between normal power and standby power or two loading equipment, or perform safe isolation and etc. the control circuit board will govern the motor through logic commands, then motor will drive the operating mechanism of main switches, quickly closing or opening or shift the lines, the safe isolation of main switch is obvious and legible by eye.

 Main Technical data

Complied standard: IEC6094-6-1, GB14048.11-2008Rated operating voltage (Ue): AC400V;Rated insulation voltage (Ue): AC690V;Rated operating current (Ie): 10 ~ 3200A;Control supply voltage: DC24V, DC48V, AC230V

Usage method

1.Full auto function: when normal power is off, the ATSE auto transferred to standby power; when normal power recover, ATSE will auto transferred to normal power again.2.The function of forcedly switching off “0” position: push “0” button forcedly, ATSE will cut off two loops of power supply.3.Remote control function:  push “I” button, normal power will be in service; push “II” button, then standby power will put into use, push “0” button, to cut off two loops of power supply4.Please select the switching function according to requirement and connect the wire correctly.5.When to book product, please indicate the ATSE model, current rating and the function you need.

Main Technical data

Complied standard: IEC6094-6-1, GB14048.11-2008Rated operating voltage (Ue): AC400V;Rated insulation voltage (Ue): AC690V;Rated operating current (Ie): 10 ~ 3200A;Control supply voltage: DC24V, DC48V, AC230V
